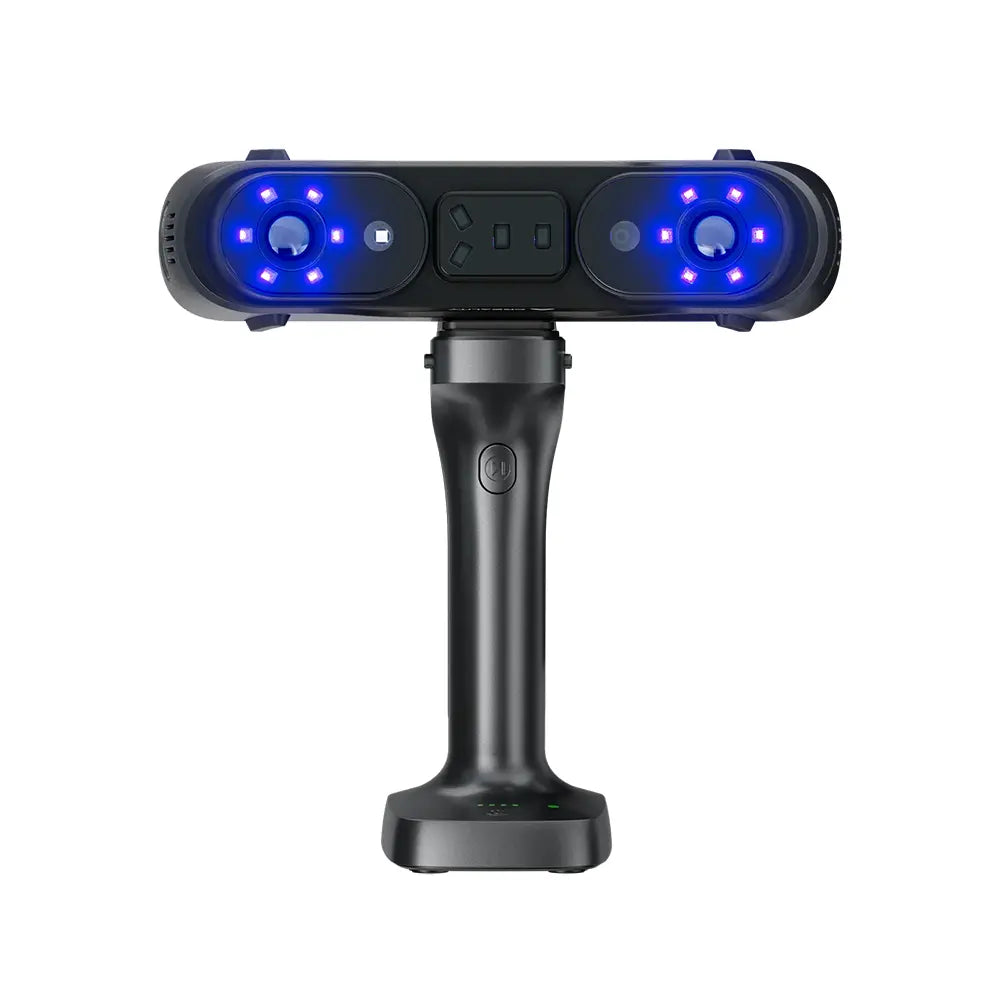

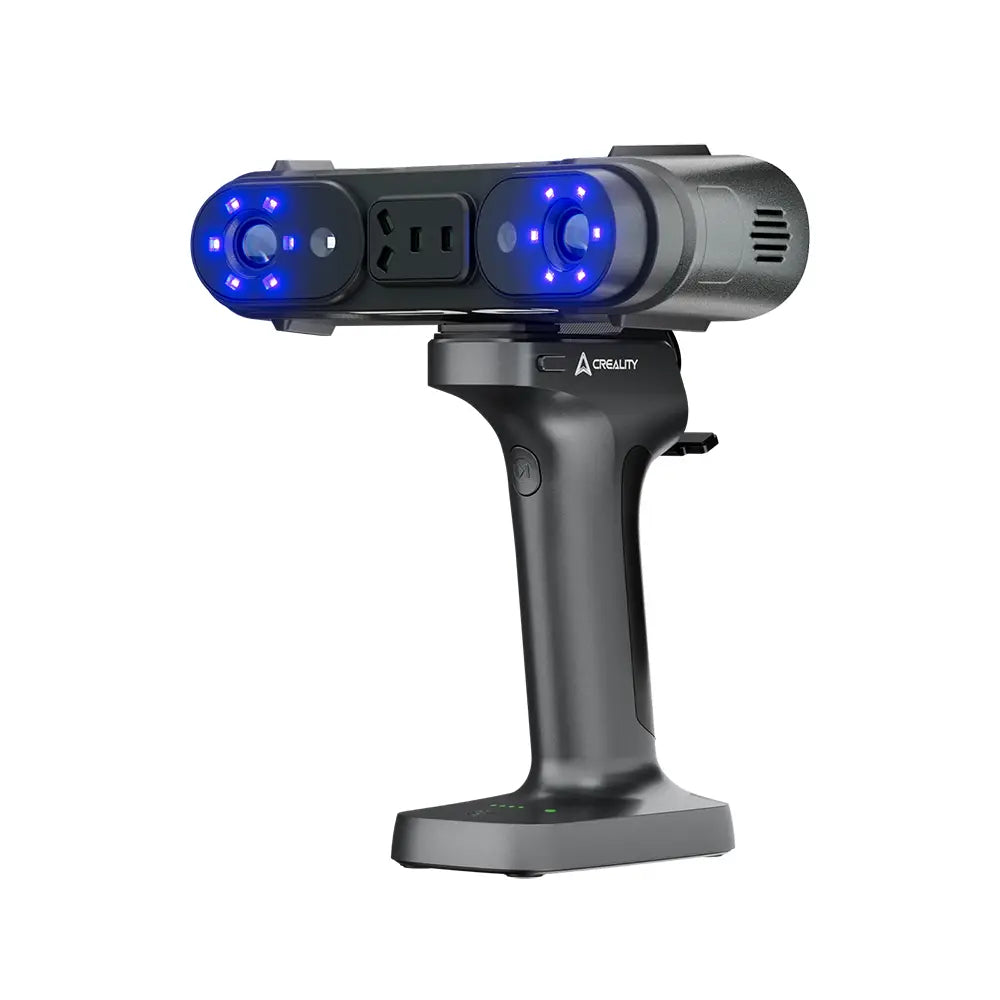

• Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner
  • Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner
  • Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner
  • Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner
  • Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner
1 5

3D Printer Store

Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner

Creality Sermoon X1 3D Scanner, 0.02mm High Precision, Blue Laser + NIR, Full Color, Industrial 3D Scanner

$100.00 USD
$100.00 USD
Sale Sold out
Specification
View full details

Key Features:

  • Multi-Light Scanning System: Capture complex surfaces with a hybrid 1 + 7 + 34 blue-laser array plus NIR light—no spray or markers needed.
  • Industrial-Level Precision: Achieve up to 0.02 mm accuracy at 90 FPS, delivering clean edges and fine details ideal for modeling, inspection, and reverse engineering.
  • Versatile Scanning Range: From 5 mm micro-parts to 4000 mm large objects, handles jewelry, mechanical parts, furniture, and automotive components with ease.
  • AI-Powered Smart Workflow: Automatic alignment, mesh optimization, hole filling, and direct export to major CAD/CAM/3D-printing platforms for a seamless pipeline.
  • Portable & Wireless Operation: Work freely indoors or outdoors; wireless scanning supported via optional Scan Bridge.
  • Cross-Platform Support - Compatible with Windows | Nov. 2025 Support for Mac, Android, and iPhone iOS*
  • Please note: QUICKSURFACE software purchases are non-refundable and non-exchangeable.

Sermoon X1 Buying FAQ

What is the most outstanding performance of the Sermoon X1 compared to previous scanners?

1. Higher volumetric accuracy of 0.02mm + 0.04mm/m, which can be further improved to 0.02mm + 0.03mm/m with the magnetic ruler and photogrammetry function; 2. Deep hole scanning, continuing the deep hole performance of S1, with a measured hole depth ratio of up to 1:6; 3. Larger single frame area - fewer marker points required per unit area; 4. Higher frame rate (7-line/single-line frame rate up to 90fps; cross-line 85fps, scanning efficiency improved by 50% compared to Raptor X); 5. Adopting CNC integrated lens photoelectric bracket, the accuracy and stability are stronger, ensuring low impact of environmental temperature changes on accuracy.

In terms of speed, how much faster is the X1 scan when scanning a model of the same size?

Parallel and single lines: 90 frames per second; intersecting lines: 85 frames per second; sampling points per second: 1.734 million points per second, a 70% improvement over the Raptor X; infrared: 30 frames per second.

In terms of product usability, is it intelligent, easy to use, and does it support wireless?

The new software retains the user-friendly design and wizard-style functionality of previous models; the photogrammetry function of industrial-grade scanners has been upgraded to further improve scanning accuracy; scanning area, efficiency, and environmental adaptability have been further improved; a wireless handle is included as standard and does not need to be purchased separately.

Recommended use cases for Sermoon X1?

Suitable for high-precision and large-scale industrial applications. When paired with a photogrammetry system, it can further enhance overall measurement accuracy, thus meeting the requirements of industrial design, reverse engineering, quality inspection, and other fields. Supports scanning black, glossy, and metallic surfaces; for transparent or highly reflective objects, it is recommended to apply a developer to improve scanning results. The built-in deep hole scanning mode can easily capture details of complex structures such as slits, grooves, and deep holes.

What is the photogrammetry function of the Sermoon X1? What are its benefits?

The principle is to place a pre-calibrated scale on or near the surface of the object to be scanned before scanning. The built-in photogrammetry algorithm then calculates the dimensions of the identified scale and its vicinity according to the preset calibrated values, thereby further improving scanning accuracy. For detailed instructions, please refer to the Sermonn X1 photogrammetry function tutorial.

Does the Sermoon X1 wireless controller support Raptor or Otter?

Yes, the Sermoon X1's wireless handle is compatible with Raptor series scanners and Otter scanners.

How long is the X1 cable?

Answer: 4.5 meters, designed for a stable connection with the Sermoon X1, compatible with Raptor and Sermoon series scanners.

What are the computer configuration requirements for the Sermoon X1?

The recommended configuration is an i7-Gen10 CPU + Nvidia graphics card (8GB VRAM) + 32GB RAM + Windows 10/11 (64-bit) or a Mac M1/M2/M3/M4 processor + 16GB RAM. However, a better configuration will result in a more stable frame rate and faster processing speed. For example, in my actual use: Intel i9-13950HX + NVIDIA RTX4000 Ada (20GB VRAM) + 64GB RAM + Windows 11 Pro (64-bit), the average frame rate using crossover cables is 70fps+.
